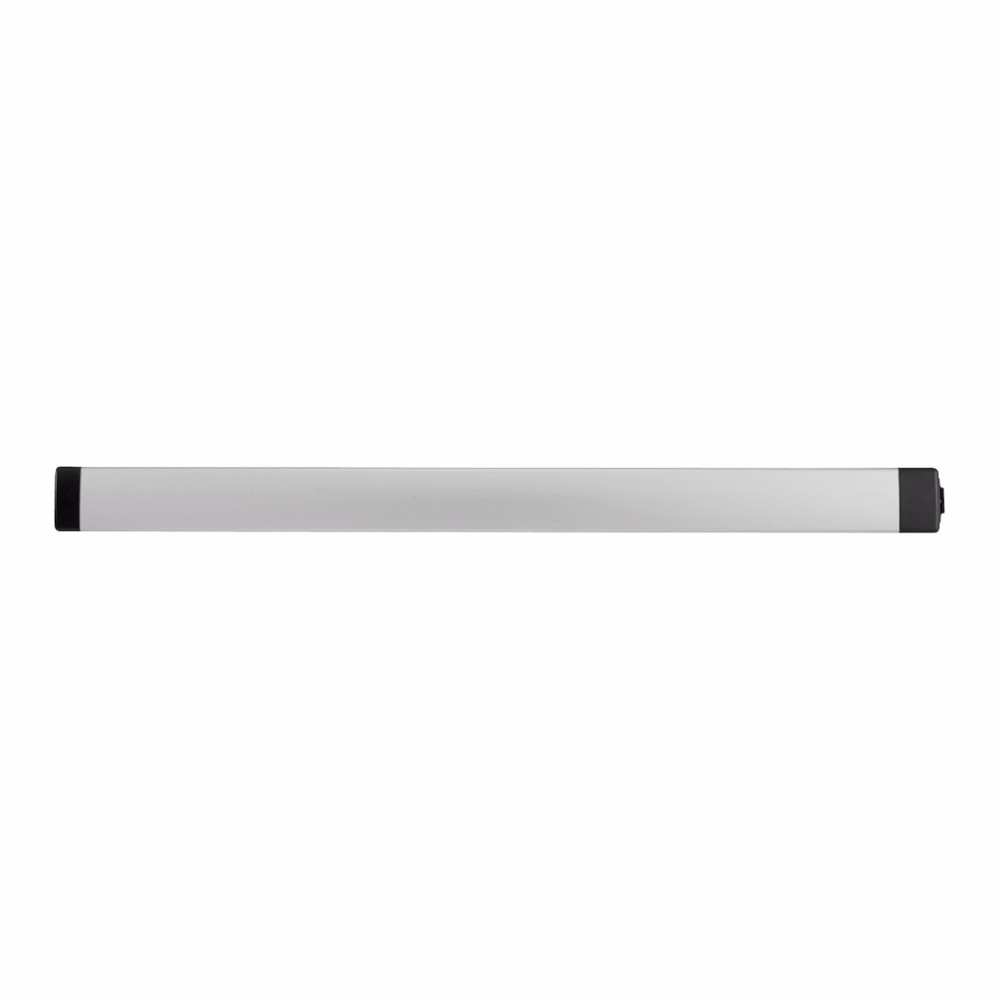

Materials: Push bar made of extruded aluminum, clad or anodized in a variety of finishes.
Handing: Device is non-handed.
Push bar Length: Standard sizes: dimensioned for 30"[762.0 mm], 36" [914.4 mm], 42" [1,066.8mm], and 48" [1,219.2 mm] openings. Standard width bars can be field cut to the next smallest opening width.
Door Thickness: Suits 1-3/4" [44.5 mm] standard, up to 2-1/4" [57.2 mm].
Stile Width: Minimum 2" [50.8 mm] stile. Fits narrow, medium, and wide stile aluminum doors.
Projection: 2-5/8" [66.7 mm] when fully projected,1-5/8" [41.3 mm] when dogged.
Fasteners: Standard machine screws.
Cylinders: Select any standard 1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder. Available separately.
Cylinder x Fixed Pull Functions: For function 03 (Night latch - key releases latch) select any standard1-5/32" [29.4 mm] diameter rim cylinder such as the 8736 Rim Cylinder.
Entry Trim Functions: For entry trim function 08 (key locks/unlocks lever) or function 09 (key releases lever) select any standard 1" [25.4 mm] length, 1-5/32" [29.4 mm] diameter mortise cylinder with MS® cam such as the 4036 Mortise Cylinder. Accommodates cylinder lengths from 1" [25.4mm] to 1-1/4" [31.8 mm]. Available separately.
Strike: Standard strike and narrow versions for centering doors in 4"jamb (both strikes included).
Removable Mullion: Allows the use of rim exit devices on paired doors without narrowing the doors. Provides higher security and better traffic flow than paired doors with vertical rod exit devices. 3890 Aluminum Mullion available separately. Select for use with doors up to 8' [2.44 m] or 10' [3.05 m]. Available in 313 Dark bronze anodized or 628 Clear anodized finish.
Standard Package: Individually boxed.
Shipping Weight: 10 lbs [4.54 kg]
